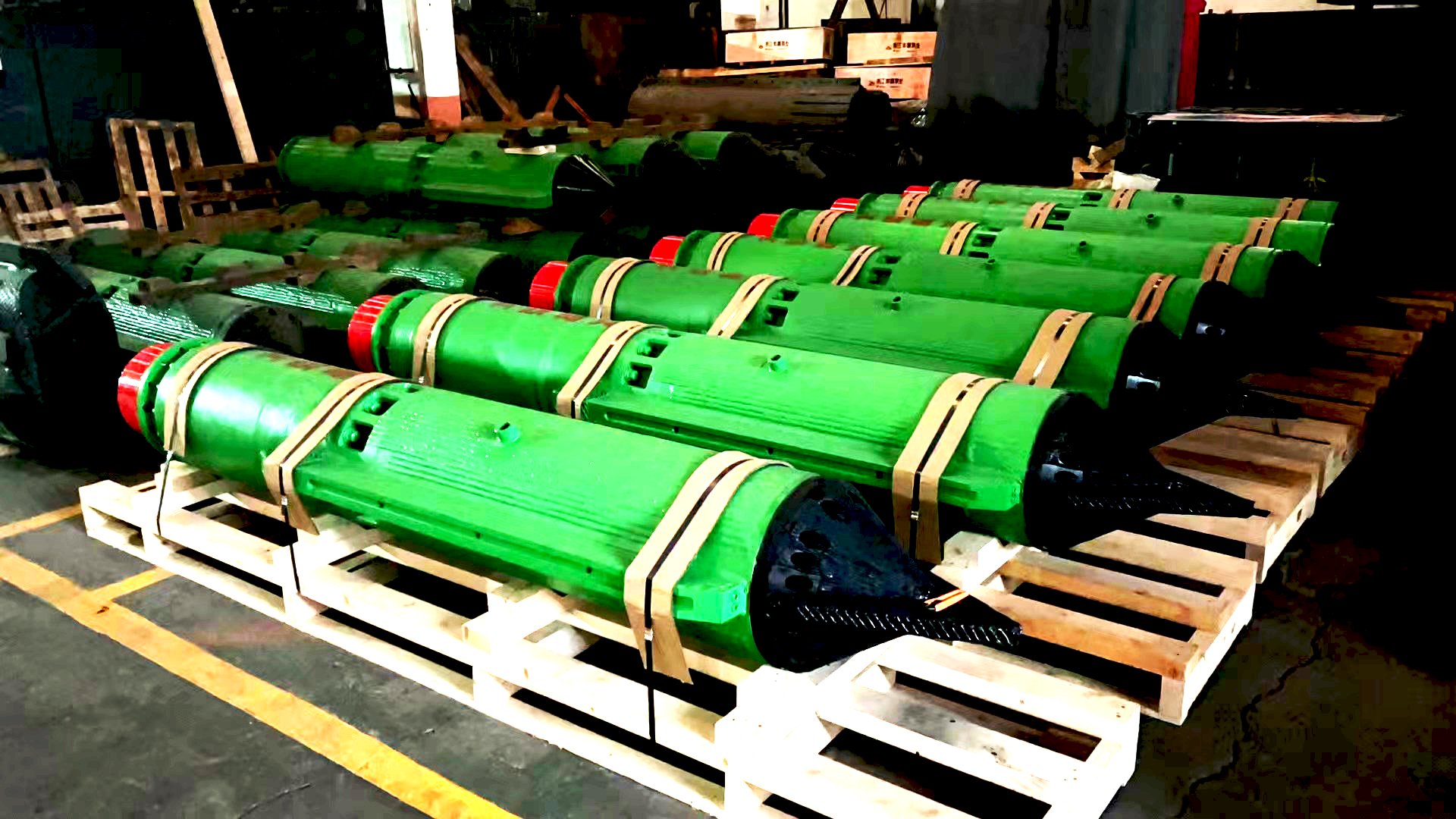

Equipment standby time drains project budgets rapidly. Deploying heavy ground improvement machinery to an unprepared site results in compounding daily losses, idle labor, and severe schedule delays. When a vibratory probe arrives before the ground, power, or lifting infrastructure is ready, the entire geotechnical operation stalls.
A frequent disconnect exists between procurement teams and site operations. Misalignment regarding power specifications, lifting capacities, spatial requirements, and method-specific staging halts deployment before the first penetration occurs. Site managers might secure a crane with adequate static capacity but fail to account for dynamic extraction forces. They might provide a generator that cannot handle the massive inrush current required to start the motor.
Implementing a systematic, engineering-led approach to pre-arrival checks eliminates these bottlenecks. Rigorous vibroflot site preparation ensures seamless assembly, safe handling, and immediate operational readiness upon the equipment's arrival. By validating every infrastructural requirement before mobilization, contractors transform potential downtime into immediate productivity.
Infrastructure alignment is non-negotiable: Precise matching of site power generation to the vibroflot electrical cabinet prevents catastrophic voltage drops and motor damage.
Spatial planning dictates assembly speed: Dedicated, stable staging areas are required for safe horizontal assembly of the probe and vibroflot extension tube prior to vertical lifting, as well as for aggregate stockpiling if utilizing vibro replacement.
Lifting parameters must exceed static weights: Vibroflot lifting equipment must account for dynamic extraction forces and the combined weight of the vibrator, extension tubes, and dampeners.
Vendor integration mitigates commissioning risks: Securing clear protocols for vibroflotation equipment commissioning and confirming vibroflot supplier technical support availability are critical final steps before mobilization.
A stable, level working platform forms the foundation of any successful ground improvement project. Crawler cranes and auxiliary equipment exert massive ground bearing pressures, especially when lifting heavy vibratory probes at extended radii. Site engineers must conduct rigorous bearing capacity checks to prevent equipment settlement during high-vibration operations. If the surface soil is too soft, the crane tracks will sink, altering the lifting angle and creating severe safety hazards. Placing timber mats or constructing a compacted aggregate working platform mitigates this risk. We typically look for a minimum bearing capacity of 150 kPa for standard rigs, but heavier setups require up to 300 kPa.
Pre-clearing underground utilities and obstructions at planned compaction points is a mandatory step. Striking a buried pipe or concrete foundation block during penetration damages the probe and halts the project immediately. Ground penetrating radar or exploratory trenching verifies that the compaction grid is clear of anomalies. The cost of repairing a severed utility line far exceeds the investment in proper pre-mobilization scanning.
Surveying teams must physically mark proper probe locations across the entire grid before the machinery arrives. Using durable, highly visible markers ensures continuous operation. Once the equipment goes live, stopping the crane to re-survey individual points wastes valuable operating time. A fully marked grid allows the operator to move seamlessly from one compaction point to the next. We recommend using color-coded wooden stakes or heavy-duty flags driven deep enough to withstand site traffic.
Site Readiness Validation Parameters
Infrastructure Category | Verification Item | Acceptance Criteria |
|---|---|---|
Working Platform | Ground Bearing Capacity | Must exceed maximum track pressure of the selected crawler crane under dynamic load. |
Site Layout | Grid Marking | 100% of compaction points physically marked and verified against utility maps. |
Electrical Supply | Generator Sizing | kVA rating must handle 2.5x to 3x the running current to accommodate motor startup. |
Fluid Management | Water Supply Volume | Continuous flow rate matching the specific pump and soil fluidization requirements. |
Project managers must establish a framework for cross-referencing project soil data with the specific equipment model ordered. Ground improvement generally falls into two categories: deep vibro compaction for densifying loose, granular soils, and vibro replacement, which installs stone columns in unfavorable, cohesive soils. The chosen method dictates the required amplitude, frequency, and eccentric moment of the vibrator. Confirming these vibroflot installation requirements against the geotechnical baseline report ensures the hardware matches the subsurface reality.
Auditing the site layout against the manufacturer’s spatial footprint is equally important. Safe operation requires designated zones for crane movement, material delivery, and personnel safety. When utilizing vibro replacement methods, site planners must calculate the required footprint for aggregate and stone backfill staging. Front-end loaders need clear, unobstructed paths to transport stone from the stockpile to the compaction point. They cannot cross live electrical cables or high-pressure water hoses during these transport runs.
The electrical control system acts as the brain of the compaction operation. The vibroflot electrical cabinet regulates amperage, protects the motor from overloads, and monitors real-time compaction data. Proper placement of this unit directly impacts project success. Site crews must isolate the cabinet from excessive ground vibration, which damages sensitive variable frequency drives (VFDs) and internal relays.
Protection from site water and slurry is a top priority. Ground improvement is inherently messy, particularly when using wet top-feed methods. Elevating the cabinet on a dedicated skid and positioning it away from prevailing winds and splash zones prevents moisture ingress. The setup must maintain a clear line-of-sight between the cabinet operator, the crane operator, and the probe entry point to ensure synchronized movements and immediate response to changing ground conditions.
Pre-arrival electrical checks involve verifying compatible voltage, phase requirements, and grounding protocols. A mismatched voltage supply will instantly damage the equipment. Electricians must confirm that the site generator outputs the exact voltage and frequency specified by the manufacturer. They must also install robust grounding rods, typically driving a copper rod at least two meters into the earth, to protect operators from fault currents.
Calculating the required kVA for the generator requires understanding the high starting current, or inrush current, of the vibratory motor. A motor might draw a running current of 200 amps, but starting that same motor under load can temporarily pull 500 to 600 amps. If the generator is undersized, the voltage drops precipitously during startup, causing the control cabinet to trip offline. Engineers specify a generator with a capacity significantly higher than the motor's continuous rating to handle these transient spikes.
Cable routing strategies demand careful planning. Heavy-duty armored cables connect the generator to the control cabinet, and the cabinet to the vibrator. These cables traverse an active construction site. They must not suffer mechanical damage from heavy machinery tracks or exposure to wet ground conditions. Suspending cables on temporary stands prevents costly electrical failures. Routing them through high-visibility protective trenches also maintains site safety.
Generator Sizing and Setup Steps
Identify the continuous running wattage of the vibrator motor from the manufacturer specifications.
Apply the specified inrush current multiplier to determine peak startup load.
Factor in the power requirements of auxiliary equipment like water pumps and site lighting.
Select a generator that provides at least 20% overhead above the calculated peak load.
Verify the generator's voltage regulation capabilities to prevent VFD faults during operation.
Choosing the right crane involves more than just checking a load chart against the static weight of the machinery. A robust decision framework for crane selection relies on maximum penetration depth and the total suspended load. The total suspended load includes the vibrator, the vibration dampener, all necessary extension tubes, and the heavy power cables hanging from the assembly. A 100-ton crane cannot lift 100 tons at a 15-meter radius, so site planners must calculate the exact working radius required for the grid layout.
Site planners must understand the difference between static lifting weight and the dynamic pull-out resistance encountered during deep vibro compaction. As the probe densifies the surrounding soil, friction along the length of the equipment increases dramatically. Extracting the probe requires the crane to overcome this intense soil grip. Therefore, vibroflot lifting equipment must possess a safe working load limit that includes a substantial safety factor. We use 1.5 to 2.0 times the static weight to handle dynamic extraction forces safely.
Safety checks for auxiliary lifting gear are mandatory. Riggers must inspect all shackles, wire ropes, and vibration dampeners before assembly. The dampener isolates the destructive high-frequency vibrations of the probe from the crane's boom and hoist rope. This prevents structural fatigue in the lifting machinery. Inspecting the elastomer blocks within the dampener for cracks or severe wear is a non-negotiable pre-lift requirement.
Crane Selection Criteria
Selection Factor | Calculation Method | Field Application |
|---|---|---|
Total Suspended Load | Vibrator + Dampener + Tubes + Cables | Establishes the baseline static weight for the crane load chart. |
Dynamic Extraction Force | Static Weight x 1.5 to 2.0 Safety Factor | Accounts for soil friction during probe withdrawal from dense strata. |
Working Radius | Distance from crane center to furthest grid point | Determines the actual lifting capacity at the required boom angle. |
Hook Height | Penetration Depth + Equipment Length + Clearance | Ensures the crane boom is long enough to lift the entire assembly vertically. |
Horizontal assembly requires extensive spatial planning. Before vertical lifting, crews lay out the vibratory probe and attach the vibroflot extension tube sections horizontally on the ground. A project requiring 20 meters of penetration needs a staging area longer than 25 meters. This accommodates the equipment, tools, and safe working clearances for the assembly crew.
Using timber cribbing or specialized pipe racks keeps the equipment elevated from mud and debris during assembly. Allowing precision-machined flange connections to sit in site slurry introduces contaminants. These contaminants compromise the joint integrity and lead to water leaks during operation. Elevated staging also protects the heavy power cables and water hoses from ground-level hazards.
The logistics of aligning the water and air hoses along the extension tubes require meticulous attention. Crews secure these lines using designated clamps. This prevents pinching or over-tensioning when the assembly is hoisted vertically. Loose cables snag on the crane boom or the edge of the borehole, leading to immediate operational failure. We use heavy-duty steel clamps spaced every two meters along the tube to ensure the lines remain tight and secure.
The wet top-feed method relies entirely on a robust fluid management system. High-pressure water pumps facilitate gravity-assisted probe penetration and soil fluidization. The water jets located at the tip of the vibrator erode the soil. This allows the heavy probe to sink to the target depth. Site engineers verify that the selected pumps meet the specific pressure and volume requirements dictated by the equipment manufacturer and the soil profile. Standard operations often require 150 to 200 cubic meters of water per hour at 8 to 10 bar pressure.
Continuous water or slurry flow is necessary for penetration. It also loosens the soil and maintains the stability of the hole against collapse. If water pressure drops while the probe is at depth, the surrounding soil collapses inward. This traps the equipment underground. This scenario leads to massive extraction costs, damaged equipment, and severe project delays.
Pre-arrival checks include verifying hose diameters, coupling integrity, and continuous water supply volumes. A standard municipal hydrant rarely provides sufficient flow for deep compaction. Contractors construct temporary on-site water storage tanks, often using large frac tanks. These tanks guarantee an uninterrupted supply to the high-volume pumps, acting as a buffer against municipal supply fluctuations.
Pumping thousands of gallons of water into the ground creates significant return flow. As the water flushes back to the surface, it carries suspended fines. This creates a thick slurry. Preparation of settlement ponds, trenches, or mechanical separation systems handles this return water. Excavators dig trenches to direct the slurry away from the immediate working platform. You do not want the crane tracks sinking into a mud pit created by your own return water.
Environmental compliance checks regarding site runoff and groundwater protection require strict adherence. Discharging sediment-heavy slurry into local waterways or storm drains violates environmental regulations. It triggers severe fines and site shutdowns. Site managers implement proper containment and filtration protocols. They use a series of cascading settlement ponds to allow the fines to drop out of suspension, ensuring that any water leaving the site meets local environmental discharge standards.
Relying on guesswork during equipment assembly invites disaster. Site managers ensure all necessary documentation is on hand before the transport trucks arrive. This includes detailed operation manuals, electrical schematics, and recommended maintenance schedules. Having these documents physically present allows site electricians and mechanics to verify connections and fluid levels without delaying the assembly process.
Establishing a direct communication line with the manufacturer's engineering team proves invaluable. Confirming vibroflot supplier technical support availability for troubleshooting during initial setup helps resolve minor technical glitches before they escalate. If an electrical fault code appears during startup, having a factory technician on speed dial allows for rapid diagnosis and correction. We always designate one site engineer as the primary point of contact with the supplier to streamline communication.
Commissioning is the bridge between static assembly and dynamic operation. Step-by-step dry-run procedures are required before the equipment enters the soil. Electricians check the motor rotation direction. Running the vibrator in reverse damages internal bearings within minutes. Crews test amperage limits and verify that the water jets operate at full pressure while the unit hangs freely from the crane. The no-load amperage should match the manufacturer's baseline specifications.
Calibrating data acquisition systems ensures accurate, real-time recording of critical implementation metrics. Modern ground improvement relies on precise data regarding penetration depth, penetration rate, withdrawal rate, and compaction energy. Proper vibroflotation equipment commissioning guarantees that the sensors communicate correctly with the control cabin. This provides the operator and the geotechnical engineer with reliable data to verify soil densification. We calibrate the depth sensor by measuring the physical length of the assembly with a tape measure and matching it to the digital readout.
Analyzing the trade-offs between the upfront effort of rigorous site preparation and the exponential costs of delays reveals a clear directive. Spending two extra days grading a solid working platform, securing the correct generator, and marking the grid costs a fraction of what a contractor loses when a 100-ton crawler crane and a specialized ground improvement crew sit idle. They wait for proper electrical cables to be delivered while the daily rental clocks continue to run.
The safety implications and liability risks of improvising lifting or electrical solutions on the fly are severe. Bypassing a tripped breaker because the generator is undersized creates immediate fire hazards. Using unrated shackles to lift a 15-ton vibrating mass is equally dangerous. Proactive site engineering eliminates the temptation to cut corners. It ensures that when the equipment arrives, it is deployed safely, efficiently, and exactly according to engineered specifications.
Download and distribute a standardized site readiness checklist to all site supervisors and procurement officers to enforce uniform preparation standards.
Audit current generator and crane contracts to ensure they meet the dynamic load and inrush current requirements of the specific vibratory equipment ordered.
Contact a geotechnical engineering specialist to review specific project parameters and confirm the chosen compaction method aligns with the site's soil profile.
Establish a dedicated horizontal staging area with elevated timber cribbing to protect flange connections and power cables during assembly.
A: Standard installation requires a highly stable working platform to support heavy crawler cranes. The crane must have sufficient lifting height based on the maximum penetration depth plus the length of the equipment. Additionally, the site needs an adequate, continuous water supply for jetting and hole stability, alongside a power generator matched to handle the motor's high inrush current.
A: Calculate the combined static weight of the vibrator, vibration dampener, extension tubes, and suspended cables. Then, apply a safety factor of 1.5 to 2.0 to this total weight. This multiplier accounts for the dynamic extraction friction and pull-out resistance encountered when pulling the probe out of densely compacted soil.
A: The cabinet houses sensitive variable frequency drives and data loggers. It must be placed on a stable, elevated surface to protect it from ground moisture, site slurry, and excessive vibration. Furthermore, it requires a strategic location that maintains clear operator visibility of both the crane and the probe entry point.
A: Deep compaction targets require multiple extension tubes bolted together. This necessitates a long, flat, and dry horizontal staging area. Crews need this space for safe mechanical assembly, torqueing flange bolts, and properly routing power cables and water hoses along the length of the tubes before vertical lifting.
A: Commissioning involves verifying electrical phasing and motor rotation direction. Crews test water and air pressure lines for leaks. A free-hanging vibration test is performed to check baseline amperage. Finally, technicians calibrate all sensors responsible for recording penetration depth, withdrawal rate, and compaction energy to ensure accurate data logging.
A: Suppliers should provide comprehensive assembly diagrams, detailed electrical schematics, and operation manuals prior to delivery. During mobilization, expect remote troubleshooting availability from their engineering team. For complex projects, having an on-site factory technician present during the initial commissioning phase is highly recommended to ensure smooth integration.
