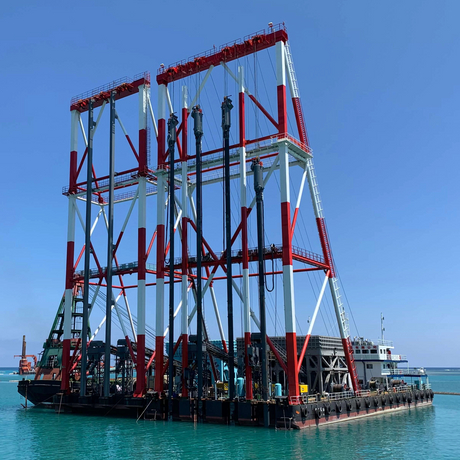

Ground improvement operations often face a harsh reality when actual aggregate usage drastically exceeds initial estimates. The financial and operational shock of material overruns can derail an entire site schedule before foundation work even begins. Vibroflotation is widely recognized as a highly effective method for improving soil strength and density. However, unpredictable stone consumption in vibroflotation directly threatens project margins. It delays critical path schedules and raises immediate questions about subsurface stability and the chosen contractor methodology. Mitigating these material overruns requires a forensic approach. Site managers and engineers must evaluate geotechnical data, equipment selection, and real-time monitoring practices. This guide breaks down the root causes of excess consumption and provides a practical framework for auditing and optimizing vibro replacement operations to keep budgets intact and ensure structural integrity.
Discrepancies between theoretical and actual stone column material consumption are primarily driven by unmapped soft soil strata (clays/organics) that allow excessive lateral bulging.
Switching from top feed to bottom feed material delivery significantly reduces material waste and provides tighter control over column diameter in unstable soils.
Implementing strict, real-time stone column quality control—tracking vibrator amperage, depth, and hopper increments—is non-negotiable for cost containment.
Contractual structures must clearly define risk allocation for stone overages to protect the overall vibroflotation project cost.
Understanding material overruns starts with defining how a vibro replacement stone column is volumetrically calculated in the field. When we design a ground improvement grid, we start with a theoretical cylinder. If the design calls for an 800mm diameter column to a depth of 10 meters, the theoretical volume is roughly 5 cubic meters. We then factor in the bulk density of the crushed stone, typically around 1.6 tons per cubic meter loose, which compacts to about 1.9 tons per cubic meter once installed.
However, the actual constructed diameter always varies from the theoretical model. During installation, the vibrator displaces soil laterally, and aggregate feeds into the resulting void. The difference between the theoretical cylindrical volume and the actual volume of stone required to achieve target compaction is the over-consumption rate. Accurately predicting this variance dictates your estimating accuracy. Field engineers track this by comparing the daily tonnage tickets from the quarry against the linear meters of column installed.
Radial displacement dictates how much stone a column will ultimately consume. Stone columns do not possess inherent structural cohesion. They rely entirely on the passive resistance of the surrounding soil to maintain their shape under load. When the vibrator penetrates the ground and aggregate is introduced, the compaction energy forces the stone outward. The low strength of inter-pile soil—the native soil matrix located between the installed columns—brings a high risk of settlement and lateral yielding.
If the surrounding soil lacks sufficient stiffness, continuous lateral bulging occurs. The stone simply displaces outward rather than compacting vertically. Consumption naturally increases until the surrounding soil matrix reaches a state of equilibrium and provides adequate confinement to form a dense aggregate pier. In highly compressible soils, this bulging can increase the column diameter by 30% to 50% before the required lateral pressure is achieved.
Not all over-consumption indicates a failure in methodology. Industry-standard over-consumption rates typically range between 10% and 20% over the theoretical volume in loose sandy soils. This margin accounts for natural densification and minor borehole irregularities. However, catastrophic overruns exceeding 50% of the theoretical volume signal severe subsurface issues or operational mismanagement.
These massive discrepancies usually occur in highly cohesive clays, unmapped organic profiles, or when aggressive installation techniques destroy the natural soil structure. Establishing strict field tolerances and halting operations when consumption spikes beyond the 20% threshold allows site teams to reassess the soil profile before material volumes spiral out of control. We recommend setting up a daily reconciliation protocol to catch these spikes early.
Daily Material Reconciliation Steps
Record the total linear meters of columns installed during the shift.
Calculate the theoretical volume required for those specific meters.
Collect and tally all aggregate delivery tickets from the stockpile.
Subtract the remaining stockpile volume to determine actual placed tonnage.
Divide actual tonnage by theoretical tonnage to find the daily overage percentage.
The primary geotechnical driver of excessive material usage is the presence of soft clays exhibiting low undrained shear strength. Soils with an undrained shear strength below 15 kPa fail to provide adequate lateral confinement during the vibratory compaction process. When the probe introduces energy into these sensitive layers, the clay yields easily. Instead of forming a defined column wall, the borehole expands uncontrollably.
This leads to the mechanics of continuous lateral bulging. The aggregate simply pushes outward into the yielding clay rather than stacking vertically to form the column. Operators are forced to feed massive volumes of stone into the void just to build enough lateral pressure to stabilize the surrounding matrix. Without sufficient shear strength, achieving the target amperage requires significantly more aggregate than the theoretical design dictates. In these conditions, pre-loading or installing wick drains prior to vibroflotation may be required to improve baseline shear strength.
High fines content and organic layers create highly compressible soft zones that swallow aggregate and cause serious installation complications. Organic soils, such as peat, lack a stable mineral skeleton and compress unpredictably under vibratory loads. When the vibroflot encounters these layers, the organics offer virtually no resistance. The resulting void can consume multiple times the expected volume of stone.
Furthermore, these soft lenses pose a severe risk of long-term settlement. To bridge these weak zones and ensure load transfer to competent bearing strata, operators must over-feed stone, intentionally creating oversized bulbs of aggregate. While necessary for structural stability, this bridging technique drastically inflates total material consumption. Identifying the exact depth and thickness of these organic layers during the CPT phase allows estimators to model the expected material loss accurately.
Pre-existing site conditions often hide unmapped subsurface voids, loose fill, or subterranean washouts that act as sinks for expensive aggregate. High water tables exacerbate this issue, especially when combined with aggressive water jetting during probe penetration. Excessive jetting pressure—often exceeding 8 bar—can wash out natural fines and create artificial cavities in the soil profile.
Once the water is shut off and aggregate is introduced, these localized washouts must be entirely backfilled with premium stone before upward compaction can resume. Thorough pre-construction site investigations and careful control of jetting pressures are required to prevent the creation of these artificial voids. Operators must monitor the return water at the surface; a sudden loss of return water often indicates the probe has punched into a void or highly permeable washout zone.
Optimal moisture content is required for achieving maximum density in the surrounding soil matrix. Deviations from this optimal state severely impact material consumption. Natural groundwater fluctuations or the introduction of too much water from over-jetting can saturate the soil beyond its liquid limit. This excess moisture reduces the effective stress and shear strength of the soil during the vibratory process.
In sensitive soils, this saturation leads to temporary liquefaction or remolding, destroying the soil's natural structure. As the soil strength drops, it offers less resistance to the expanding stone column, leading to higher material intake before the required compaction resistance is met. Managing the water flow rate during penetration and switching to air-flush systems in highly sensitive soils can mitigate this risk.
Expected Material Variance by Soil Profile
Soil Classification | Typical Undrained Shear Strength | Expected Over-Consumption Risk | Primary Failure Mechanism |
|---|---|---|---|
Dense Sands / Gravels | > 50 kPa | 5% - 10% | Minor borehole irregularities. |
Loose Silty Sands | 25 - 50 kPa | 10% - 20% | Natural densification and minor bulging. |
Soft Cohesive Clays | 10 - 25 kPa | 30% - 50% | Continuous lateral bulging and yielding. |
Peat / Organics | < 10 kPa | > 50% (Severe) | Total lack of confinement; massive bridging required. |
The method of delivering aggregate to the compaction zone plays a massive role in overall efficiency. Top feed methods rely on the annular space around the vibrator remaining open so that stone dumped at the surface can fall to the tip of the probe. In loose soils, high-water-table environments, or collapsing stratigraphies, this borehole frequently caves in. When the hole collapses, aggregate mixes with native soil, material is lost at the surface, and unquantifiable waste occurs.
Conversely, utilizing bottom feed material delivery eliminates these risks. Bottom feed equipment delivers stone directly to the tip of the vibroflot via an attached tremie pipe. This ensures precise placement, minimizes surface waste, and maintains hole integrity regardless of the surrounding soil's stability. By forcing the stone directly into the compaction zone, bottom feed systems provide tight control over the column diameter and drastically reduce unnecessary material consumption.
Comparison of Material Delivery Methods
Operational Feature | Top Feed System | Bottom Feed System |
|---|---|---|
Delivery Mechanism | Stone dumped at surface, falls through annular space. | Stone delivered directly to probe tip via tremie pipe. |
Borehole Stability Requirement | Requires stable soils to keep the hole open. | Independent of soil stability; prevents hole collapse. |
Material Waste Risk | High risk of surface waste and soil mixing. | Minimal waste; precise volume placement. |
Suitability for High Water Table | Poor. High risk of washout and blockages. | Excellent. Displaces water efficiently at depth. |
The choice between electrically powered and hydraulically driven probes impacts compaction energy and frequency control. Electric vibrators typically operate at a fixed frequency, providing consistent, reliable compaction energy ideal for uniform granular soils. Hydraulic vibrators offer variable frequency control, allowing the operator to adjust the compaction energy based on real-time soil resistance.
In highly variable stratigraphy, the ability to tune the frequency prevents over-remolding of sensitive clays. If a fixed-frequency probe delivers too much energy into a sensitive layer, it destroys the soil structure, forcing the operator to consume more stone to restabilize the zone. Selecting the right power delivery system based on the geotechnical baseline dictates your ability to control material usage. We often deploy hydraulic rigs on sites with interbedded clay and sand layers to give operators the flexibility they need.
Mismatched equipment specifications directly cause material overruns. Using a high-amplitude probe in highly sensitive clays can over-remold the soil. Amplitude dictates the lateral displacement of the probe. While high amplitude works well for densifying loose sands, applying it to soft cohesive soils simply churns the clay into a slurry. This destroyed natural structure offers zero confinement, requiring massive volumes of stone to rebuild a stable matrix.
Penetration and extraction rates must also be carefully managed. Extracting the probe too quickly leaves voids that collapse before stone can fill them, while extracting too slowly over-compacts the zone and wastes time and material. A standard extraction rate of 0.5 meters per minute, pausing for aggregate placement and repenetration, ensures a dense column without over-stressing the surrounding soil.
Human error remains a significant variable in stone column material consumption. Operator technique dictates how efficiently the column is built. Over-compaction, excessive dwell times at specific depth intervals, and aggressive surging all lead to material waste. When an operator leaves the vibrating probe at a single depth for too long, the continuous energy breaks down the surrounding soil matrix.
Over-compaction actively reduces soil strength in certain sensitive clays, forcing more stone into the matrix than structurally required. Proper training ensures operators read the amperage gauges correctly. For example, if the free-hanging amperage is 150A, the operator should extract the probe the moment the gauge hits the target compaction resistance of 300A. Lingering at 300A simply pushes more stone laterally, wasting material and fuel.
Manual tracking of aggregate usage is obsolete and prone to massive estimation errors. Modern ground improvement relies on automated Data Acquisition (DAQ) systems housed in monitoring cabins. These systems provide continuous, real-time tracking of probe depth, vibrator amperage, and stone volume placed per vertical foot.
By monitoring these metrics simultaneously, site engineers can instantly identify soft zones where consumption spikes. If amperage remains low while stone volume increases rapidly, the operator knows immediately that the soil is yielding, allowing for quick adjustments to dwell times or lift heights. The DAQ screen provides a visual profile of the column as it is built, removing the guesswork from the compaction process.
Estimating stone volume by counting loader buckets is a primary cause of billing disputes and inaccurate consumption records. Bucket volumes vary wildly depending on operator technique, moisture content of the stockpile, and material settlement. Rigorous stone column quality control demands precise calibration.
Rigs must be equipped with calibrated hopper weights or load cells that measure the exact tonnage of aggregate delivered into the tremie pipe. This calibrated tracking ensures that the volume recorded on the DAQ matches the actual material disappearing from the stockpile, providing an auditable trail for project stakeholders. Load cells should be zeroed out at the start of every shift to account for mud or debris buildup in the hopper.
Manual vs. Automated Tracking Systems
Tracking Metric | Manual Observation | Automated DAQ System |
|---|---|---|
Volume Measurement | Counting loader buckets (highly inaccurate). | Calibrated load cells measuring exact tonnage. |
Compaction Effort | Visual observation of rig vibration. | Digital amperage logging per 0.5m lift. |
Depth Control | Paint marks on the probe extension tubes. | Electronic depth encoders accurate to the millimeter. |
Reporting | Handwritten daily logs prone to human error. | Exportable digital logs for immediate engineering review. |
Waiting for post-installation Cone Penetration Tests (CPTs) or plate load tests to verify column integrity is too late for cost control. While post-installation testing is required for final structural sign-off, it provides zero real-time feedback on material consumption. Effective quality control correlates real-time amperage spikes with stone volume targets during construction.
If the DAQ shows that target amperage is reached within the theoretical volume tolerance, the operator can confidently move to the next lift. Relying solely on post-testing means discovering material overruns weeks after the budget has been blown. We mandate that all operators follow a strict in-process checklist before moving off a completed column location.
Daily QA/QC Field Checklist
Calibrate hopper load cells daily before the first probe penetration.
Establish baseline amperage targets based on the initial test column program.
Monitor the DAQ screen for sudden drops in resistance indicating unmapped soft zones.
Reconcile daily stockpile delivery tickets against the digital DAQ volume logs.
Verify that extraction lift heights do not exceed 1.0 meter to prevent necking.
The financial impact of a 30% stone overrun on a large-scale commercial foundation project is severe. Aggregate costs, combined with the logistics of delivery, form a massive percentage of the overall ground improvement budget. Beyond the direct cost of the stone, secondary costs quickly accumulate.
Increased trucking leads to severe site congestion, slowing down parallel construction activities. The extra time required to install oversized columns causes schedule delays, triggering potential liquidated damages. Protecting the vibroflotation project cost requires aggressive monitoring from day one and the willingness to halt production if consumption trends exceed acceptable baselines. Site managers must review the DAQ logs daily to catch upward trends in material usage before they impact the monthly payment application.
Selecting the right partner is the most effective risk mitigation strategy. When vetting a ground improvement contractor, project owners must look beyond the lowest initial bid. Evaluate their equipment fleet. Do they own modern bottom-feed rigs equipped with load cells? Do they utilize electric or hydraulic probes suited for the specific soil profile identified in the geotechnical report?
Request their standard QA/QC data handover protocol to ensure transparent reporting. Demand case studies demonstrating past success in similar soil profiles. A contractor experienced in managing highly sensitive clays will save far more in material efficiency than they cost in mobilization premiums. Ask specifically how they handle sudden drops in amperage during installation.
The structure of the contract dictates who bears the financial burden of unexpected stone overages. Lump Sum contracts place the risk entirely on the contractor, which often leads to inflated initial bids to cover potential unknowns. Unit Rate contracts charge per ton of stone placed, placing the risk of over-consumption entirely on the project owner.
The most effective strategy involves structuring contracts with shared-risk thresholds. For example, the owner pays a standard unit rate up to a 15% overage, after which the contractor absorbs a percentage of the cost. This aligns contractor incentives with project budget constraints, ensuring the operator works efficiently rather than simply dumping stone to build amperage. Clear definitions of what constitutes a "changed subsurface condition" must be written into the commercial terms.
Mandate a comprehensive site investigation targeting fines and organics before finalizing the foundation design.
Execute a heavily monitored pilot test program to establish accurate baseline consumption rates and equipment parameters.
Finalize commercial terms that cap material risk, ensuring both the owner and the contractor share the responsibility of efficient installation.
Deploy automated DAQ systems on all rigs to track depth, amperage, and stone volume in real-time.
A: Industry-standard tolerances typically range from 10% to 20% over the theoretical cylindrical volume. This accounts for natural densification and minor radial displacement in loose sandy soils. If consumption consistently exceeds 20%, halt work to reassess the inter-pile soil strength and equipment settings.
A: Bottom feed systems deliver aggregate directly to the probe tip via a tremie pipe. This eliminates reliance on an open annular space, prevents borehole collapse, stops native soil from mixing with the aggregate, and completely eliminates surface material waste, ensuring highly precise volume placement.
A: Stone columns rely on the lateral confinement provided by surrounding soil. Soils with low undrained shear strength yield easily under vibratory energy, causing continuous lateral bulging. More stone is required to push outward until enough passive resistance is built to stabilize the column.
A: The most effective method is utilizing automated Data Acquisition (DAQ) systems inside monitoring cabins. These systems track vibrator amperage, depth, and calibrated material hopper weights in real-time, allowing operators to match compaction effort precisely with aggregate volume per vertical foot.
A: Yes. Over-jetting introduces too much water, washing out natural fines and creating artificial voids. It can also saturate the soil beyond its liquid limit, reducing shear strength and necessitating higher volumes of backfill material to restabilize the remolded zone.
A: Electric probes typically run at a fixed frequency, providing consistent energy ideal for uniform soils. Hydraulic probes offer variable frequency control, allowing operators to adjust energy output in sensitive clays, preventing over-remolding of the soil structure and reducing unnecessary aggregate waste.
