Deep soil compaction success relies entirely on the mechanical reliability of downhole equipment operating under extreme subterranean stress. Stone column installation demands continuous, high-impact force. When geotechnical projects face unexpected downtime, the root cause often lies deep underground. Bearing failures, overheating, or structural fatigue within the lower probe halt progress instantly. Equipment managers know these delays destroy project schedules and inflate operational budgets.
The vibroflot vibration body serves as the primary engine of ground improvement. It generates the immense forces required to densify soil. A rigorous understanding of its mechanics is essential. Equipment managers and geotechnical contractors must analyze wear patterns and replacement logistics. Mastering these elements minimizes project delays and optimizes capital expenditure. You will learn how this component functions, how to evaluate its structural integrity, and how to source reliable replacements for uninterrupted site operations.

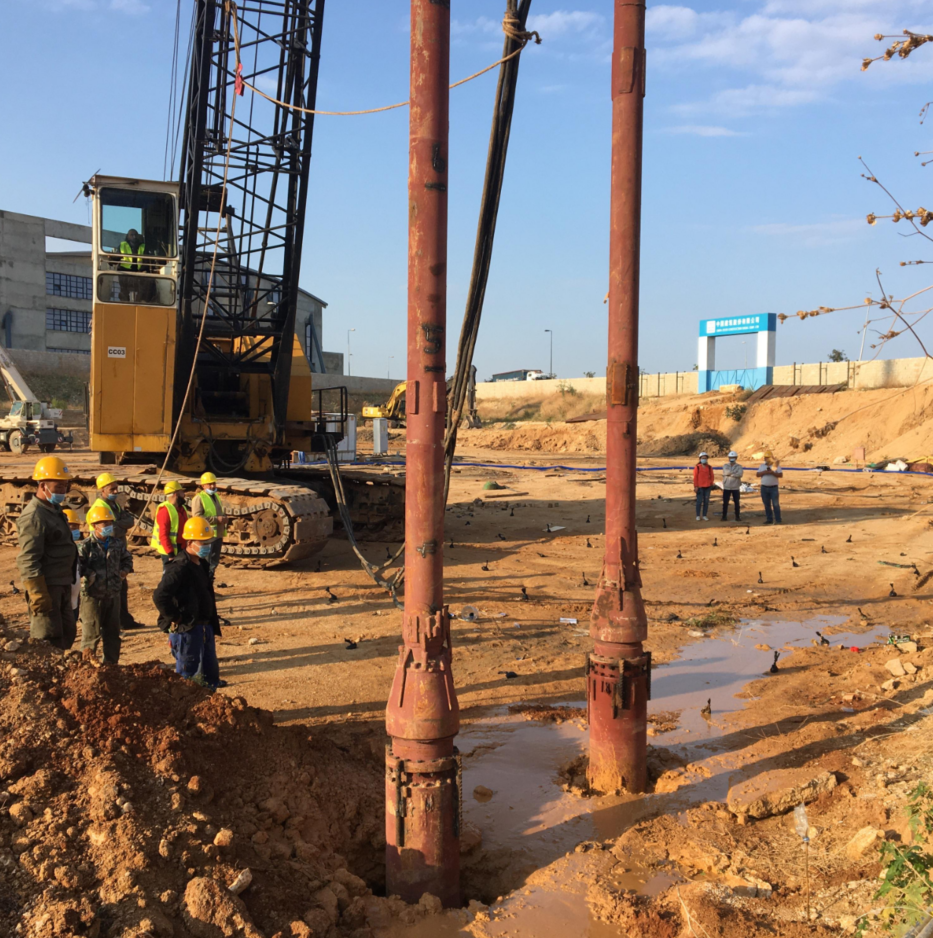

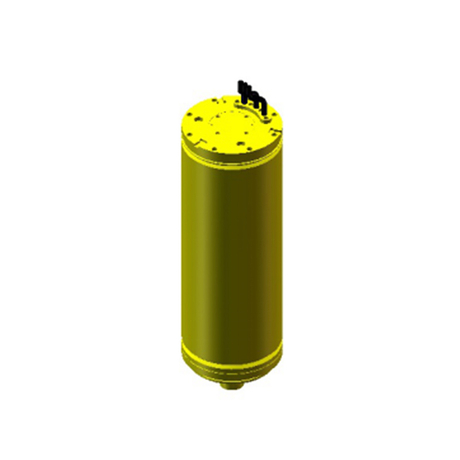

The vibration body is the lower cylindrical section of the probe responsible for generating horizontal centrifugal forces via an eccentric weight system.
Evaluating a vibration body requires analyzing bearing load capacities, cooling efficiency, and the structural integrity of the wear casing.
Preventative maintenance and high-quality vibration dampening are critical to protecting the connected motor and extension tubes from destructive resonance.
When sourcing replacements, contractors must weigh the upfront cost of third-party components against the verified tolerances of OEM parts to ensure long-term operational stability.
The core function relies on basic physics applied to heavy machinery. An eccentric weight rotates rapidly on a central shaft inside the lower probe. This rotation produces massive horizontal vibrations. The mass sits off-center, creating a deliberate mechanical imbalance. As the shaft spins, centrifugal force pushes outward against the casing. This action generates the horizontal amplitude necessary for deep soil compaction.
This horizontal force liquefies surrounding granular soils. The intense vibration reduces inter-granular friction instantly. Soil particles lose their structural framework momentarily. They rearrange into a much denser state under their own weight and the applied energy. This densification process creates a stable foundation capable of supporting heavy structural loads without excessive settlement.
Rotational frequency directly impacts the effective compaction radius. Higher RPM generates faster vibration cycles, fluidizing fine sands efficiently. Centrifugal force increases exponentially with rotational speed. Equipment operators must balance frequency and amplitude based on site conditions. Coarse gravels require different settings than fine silty sands. Proper calibration ensures maximum compaction energy reaches the furthest possible radius from the probe center.
Field operators monitor the compaction radius by observing surface subsidence. As the soil densifies, a visible crater forms around the insertion point. The volume of backfill material consumed provides a direct measurement of subsurface densification. The vibration unit must maintain consistent output to ensure uniform column diameters throughout the entire treatment depth.
The drive mechanism remains structurally separate from the vibration generation unit. Electric or hydraulic motors provide the rotational power. They sit above the vibration chamber in a protected housing. This separation protects the power source from direct impact and extreme heat. The motor generates torque, but it must not absorb the resulting shockwaves.
Power transmits down to the eccentric shaft via flexible couplings or universal joints. These couplings act as mechanical bridges. They transfer rotational force while absorbing slight misalignments between the upper and lower sections. The design allows the shaft to spin freely while the heavy housing vibrates violently. Flexible connections prevent shaft shearing under extreme lateral loads.
Isolating the vibroflot motor and vibration body is non-negotiable for equipment survival. Sensitive drive components cannot survive severe horizontal forces. Without proper isolation, motor bearings would shatter within hours of operation. The structural divide ensures the engine drives the process without destroying itself in the harsh subterranean environment. Hydraulic motors require additional protection for high-pressure hoses, while electric motors need robust sealing against water ingress.
The eccentric mass configuration defines the equipment's capability. Inside the vibroflot vibration body assembly, heavy steel blocks attach to the central shaft. Some designs use a single solid machined piece for maximum durability. Others use adjustable bolt-on weights to modify the eccentric moment. This mass concentrates on one side of the rotational axis. The specific geometry determines the total centrifugal output.
Metallurgical requirements for the shaft are incredibly strict. It must withstand continuous high-cycle fatigue. Standard steel would shear under the constant bending stress generated at 3000 RPM. Manufacturers use forged alloy steels, often incorporating chromium and molybdenum. These materials undergo precise heat treatment processes. The resulting shaft offers high tensile strength and superior fatigue resistance. It survives millions of rotational cycles without micro-fracturing.
Dynamic balancing of the shaft assembly prevents unwanted vertical vibrations. The engineering focus remains entirely on horizontal displacement. Any vertical imbalance wastes energy and accelerates wear on the upper coupling components. Precision CNC machining ensures the eccentric mass aligns perfectly with the bearing journals.
Bearings represent the most vulnerable point of failure in the entire system. They support the rapidly spinning eccentric shaft. They absorb the entire centrifugal load and transfer it to the outer casing. These components endure extreme radial forces and high operating temperatures. When bearings fail, the entire compaction process stops immediately.
Lubrication methods dictate cooling efficiency under continuous operation. Oil bath systems submerge the lower bearings completely. The spinning shaft splashes oil throughout the chamber, creating a continuous mist. This method dissipates heat rapidly into the surrounding soil. Grease lubrication offers simpler maintenance but traps heat inside the bearing housing. Oil systems generally provide superior longevity for deep, continuous compaction tasks.
Realistic lifespans depend heavily on operating hours and soil resistance. In soft sands, premium cylindrical roller bearings might last thousands of hours. In dense, highly resistant strata, lifespan drops significantly due to increased friction and heat. Operators should expect bearing replacements as a standard maintenance procedure. Monitoring operating hours prevents catastrophic in-hole failures.

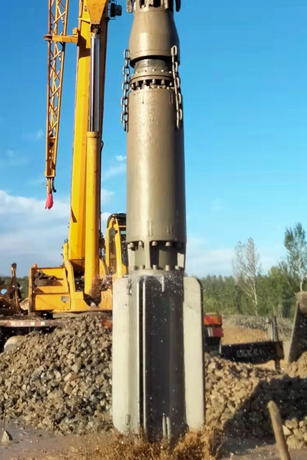

The external housing faces severe abrasion constantly. Quartz sands and crushed stone act like heavy-duty sandpaper against the steel shell. The casing must protect the internal mechanics while plunging deep underground. High-strength steel with thick walls forms the primary pressure vessel. The nose cone features a reinforced, pointed design. It facilitates penetration through dense soil layers and directs water jetting.
Hard-facing extends the lifespan of the casing significantly. Technicians weld tungsten carbide or similar hardened alloys onto high-wear areas. Replaceable wear ribs offer another layer of protection. These heavy steel strips absorb the brunt of the friction during insertion and extraction. Site crews can cut off worn ribs and weld new ones on-site. This strategy saves the main pressure vessel from permanent structural damage.
Water jetting ports integrate directly into the nose cone and lower casing. These ports deliver high-pressure water to fluidize the soil ahead of the probe. The water flow reduces penetration resistance and cools the external casing. Proper maintenance of these ports prevents blockages that could stall the equipment during deep insertions.
Selecting the right equipment requires matching specifications to the project site. Amplitude and frequency dictate compaction success. High amplitude works best for coarse gravels and crushed stone. The larger soil particles need aggressive displacement to settle into a dense matrix. Specific, higher frequencies work better for finer sands. The rapid vibration fluidizes the fine grains more effectively, allowing them to consolidate.
Contractors must evaluate fixed-eccentricity versus variable-eccentricity models. Fixed models offer robust simplicity. They have fewer moving parts and lower failure risks in harsh environments. Variable models allow operators to adjust the eccentric moment above ground. This flexibility suits projects with highly variable soil strata. Choosing a vibration body for vibroflotation equipment means balancing mechanical simplicity with operational versatility.
Site investigations provide the standard penetration test (SPT) N-values needed for equipment selection. Dense layers with high N-values require heavier probes with massive centrifugal force to achieve penetration. Soft, loose deposits allow for lighter equipment operating at higher frequencies. Matching the tool to the geotechnical report prevents equipment overload and ensures target densities are met.
The vibroflot vibration damper component sits directly above the vibration unit. It plays a vital protective role. Heavy-duty elastomer buffers or massive steel spring systems absorb upward energy. They allow the lower section to vibrate freely while keeping the upper sections stable. This isolation is mandatory for equipment survival.
Evaluating damper effectiveness involves checking vibration transmission. A healthy damper stops resonance from traveling up the drill string. It protects the crane line, extension tubes, and the power pack. If the crane boom shakes violently, the damper is failing. Effective dampening ensures all compaction energy directs outward into the soil, not upward into the machinery.
Operating with degraded dampening components introduces severe risks. Structural fatigue accelerates in the extension tubes. Welds begin to crack under the unintended stress. Premature motor failure becomes inevitable as shockwaves destroy the drive bearings. Replacing worn elastomer buffers promptly prevents massive secondary repair bills and keeps the site safe.
Modern geotechnical engineering demands real-time data logging. Clients require proof of compaction for quality assurance. The equipment must integrate seamlessly with onboard sensors. Operators monitor depth, amperage, and tilt continuously. This data confirms the probe reached the target depth and achieved the required soil resistance.
Performance metrics must integrate into verifiable reports. As the soil densifies, the vibration body faces higher resistance. The motor draws more amperage to maintain rotation. This amperage spike serves as a direct proxy for soil density. Site engineers rely on this telemetry to approve column completion. Reliable sensors ensure accurate, defensible compaction data for the final handover.
Advanced systems incorporate GPS tracking to map each compaction point accurately. The data logger records the exact coordinates, depth, and energy consumption for every stone column. This digital record eliminates guesswork and provides structural engineers with the confidence needed to proceed with foundation construction.
Equipment managers must anticipate specific failure modes. The subterranean environment is hostile, filled with abrasive particles and high hydrostatic pressure. Recognizing the early warning signs prevents catastrophic breakdowns. Proactive management keeps the project moving forward without costly interruptions.
Thermal overload destroys bearings rapidly. Inadequate cooling or lubrication breakdown causes friction to spike. The internal temperature exceeds the bearing steel's tolerance. The metal expands, clearances vanish, and the bearing seizes completely. This failure often ruins the eccentric shaft and the bearing housings simultaneously, requiring a complete internal rebuild.
Water ingress poses a constant threat during submerged operations. High-pressure jetting surrounds the tool with abrasive slurry. If a mechanical seal fails, water enters the lubrication chamber. The oil emulsifies instantly, losing its load-bearing capacity. Contaminated lubrication guarantees rapid bearing destruction and severe internal corrosion.
Structural fatigue occurs during prolonged operation in highly resistant strata. Pushing the equipment beyond its design limits causes micro-fractures. These cracks propagate through the housing or the main shaft. Eventually, the metal tears apart under the centrifugal load. Proper equipment sizing prevents this overload and extends the operational lifespan of the casing.
Environmental vibration transmission creates external liabilities. If the equipment calibration ignores the soil profile, excessive vibration travels outward. This energy can damage adjacent structures or underground utilities. Operators must monitor ground velocities near sensitive infrastructure to prevent costly collateral damage and project shutdowns.
A realistic, evidence-based maintenance schedule is mandatory. Daily visual inspections catch external wear before it breaches the casing. Crews must check hard-facing and weld integrity every shift. Routine oil sampling detects internal problems early. Scheduled bearing replacements prevent mid-column failures.
Failure Mode | Early Warning Sign | Preventative Action |
|---|---|---|
Thermal Overload | Discolored external casing, high amperage draw | Monitor duty cycles; ensure proper oil levels |
Water Ingress | Milky or frothy oil during sampling | Replace mechanical seals at scheduled intervals |
Structural Fatigue | Visible hairline cracks near flange welds | Perform routine non-destructive testing (NDT) |
Bearing Wear | Excessive noise, metallic flakes in oil | Implement strict operating hour replacement limits |
Field crews must follow a strict daily inspection routine to maintain equipment integrity:
Check all flanged connections and torque bolts to manufacturer specifications before the first insertion.
Inspect the elastomer buffers in the damper unit for tearing, bulging, or heat degradation.
Measure the thickness of the external wear ribs and schedule welding if they fall below minimum tolerances.
Extract a small oil sample from the lower chamber to check for water contamination or metal shavings.
Verify that all water jetting ports are clear of debris and flowing at full pressure.
Monitoring motor amperage serves as a highly effective early warning system. An unexpected, sustained increase in amperage indicates mechanical binding. It often signals bearing friction inside the vibration unit. Operators should halt operations and investigate immediately when baseline amperage creeps upward without a corresponding increase in soil density.
Procuring replacement parts requires strategic decision-making. Purchasing directly from the original equipment manufacturer guarantees exact fitment. OEM parts carry full warranties and proven engineering data. However, lead times can be long, and upfront costs are generally higher. Contractors must balance these factors against project deadlines and equipment availability.
Choosing a specialized third-party vibroflot accessory manufacturer offers alternatives. These suppliers often provide faster availability and competitive pricing. However, buyers must demand strict quality assurance metrics. Request ISO certifications and bearing sourcing transparency. Review metallurgical testing reports for the eccentric shafts. Verify CNC machining tolerances to ensure seamless integration with existing equipment.
A reliable supplier will provide detailed technical drawings confirming flange dimensions and bolt patterns. They should also offer material certificates for the steel used in the wear casing. Establishing a relationship with a competent manufacturer ensures you have access to critical wear parts when unexpected breakdowns occur on remote sites.
Submitting an accurate inquiry prevents costly shipping mistakes. Heavy cylindrical components are expensive to transport internationally. Exact compatibility is mandatory. A vague request leads to delays and mismatched flanges. Procurement teams must provide comprehensive technical details upfront to avoid operational downtime.
Use a strict checklist when drafting a vibroflot spare parts inquiry. Include the equipment make and exact model. Provide the original serial numbers. Specify the required operating frequency and amplitude. Detail the flange connection dimensions down to the millimeter. Note the specific operating environment, such as offshore saline conditions or highly abrasive onshore quartz.
Always request clear warranty terms in writing. Ask for guaranteed lead times for critical wear parts. Factor in international shipping logistics. These components weigh several tons. Port delays and customs clearances impact the actual delivery date. Proper planning ensures the replacement arrives before the active unit fails completely.
The vibration unit dictates the ultimate success of any vibroflotation project. It serves as the primary determinant of compaction efficiency and operational lifespan. Ignoring its maintenance leads to catastrophic failure and severe project delays. Rigorous component evaluation and proactive monitoring keep the equipment running smoothly. Procurement decisions must prioritize bearing quality, seal integrity, and rapid spare parts support.
Take immediate action to protect your equipment fleet and maintain project momentum:
Audit the operating hours of all current vibration units to identify equipment nearing bearing lifespan limits.
Schedule comprehensive oil analysis for all active units to detect early signs of water ingress or metal fatigue.
Inspect all external wear casings and schedule hard-facing maintenance before the primary pressure vessel sustains damage.
Prepare standardized inquiry templates containing all exact flange dimensions and serial numbers to streamline future component sourcing.
A: Bearing lifespan typically ranges from 1,000 to 2,500 operating hours. This variance depends entirely on soil conditions and lubrication quality. Operating continuously in highly resistant, dense strata reduces lifespan. Strict adherence to oil sampling and temperature monitoring helps maximize bearing longevity.
A: External wear parts, like ribs and hard-facing, can be welded on-site. However, internal bearing or shaft overhauls require a controlled, clean-room environment. Opening the main chamber on a dusty construction site guarantees contamination and rapid subsequent failure.
A: It connects via heavy-duty bolted flanged connections. A vibration isolator, or damper, sits between the vibration unit and the extension tubes. This setup secures the physical connection while preventing destructive resonance from traveling up the drill string.
A: Overheating stems from three primary culprits. Lubrication failure increases internal friction. Excessive ambient ground temperatures in deep, hard strata prevent heat dissipation. Finally, operating the equipment beyond its designed amplitude capacity overloads the bearings, generating massive heat.
A: Symptoms include excessive, violent vibration transmitting into the crane line or boom. You may also hear unusual metallic clanking noises. Visual inspections might reveal tearing, cracking, or severe degradation of the elastomer buffer elements.
A: Yes, provided the specifications align perfectly. You must match the hydraulic flow rates or electrical power requirements exactly. Furthermore, the physical coupling dimensions and flange bolt patterns must be identical to ensure safe, secure integration.
