Construction teams often assume maximizing motor kilowatt ratings automatically translates to superior soil density. Many believe higher power guarantees deeper foundation layers and faster project completion. This assumption creates significant operational risks. Mismatched equipment leads to severe consequences on site. Over-specifying power causes excessive fuel consumption, premature equipment wear, and severe soil disturbance. Conversely, under-specifying fails to achieve the required bearing capacity. Weak compaction leaves foundations vulnerable to long-term shear forces and heavy external loads.
Evaluating vibroflot power requires a strict technical framework. Engineers must analyze site-specific soil mechanics and grid spacing requirements. Feed methods, whether top or bottom, dictate the necessary kinetic energy. Operational logistics determine the practical limits of equipment deployment. Matching the machine to the soil ensures optimal ground improvement without unnecessary mechanical strain.
Raw motor power (kW) must be evaluated alongside centrifugal force, amplitude, frequency, and water jetting configurations; higher power is only effective if the soil gradation allows for efficient energy transfer.
Selecting between standard and high power vibroflot models (e.g., 75kW vs. 180kW) dictates the required grid spacing and directly impacts the project's commercial viability.
Excessive vibroflot power in soils with high fines content can cause localized liquefaction without achieving long-term drainage consolidation.
Proper vibroflotation equipment selection requires aligning the probe's specifications with the carrier rig's capacity, the chosen feed method (top-feed vs. bottom-feed), and the specific vibroflot manufacturer's maintenance requirements.

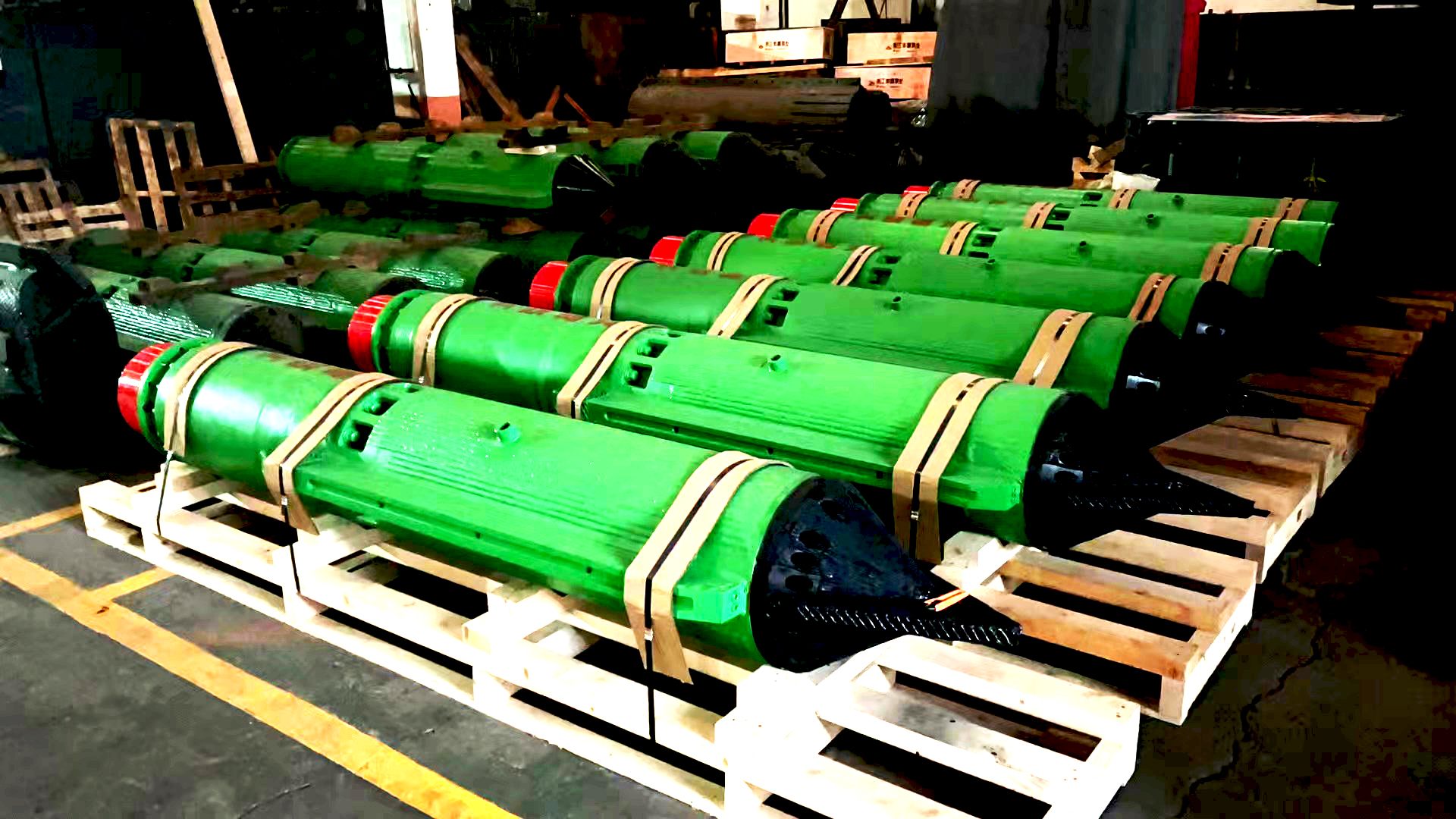

Defining power in the context of deep foundation work requires separating electrical input from mechanical output. Motor power, measured in kilowatts (kW), represents the electrical or hydraulic energy consumed by the drive unit. This input does not compact the soil directly. The true measure of compaction capability lies in the resulting mechanical outputs: centrifugal force, eccentric moment, and amplitude. An eccentric weight spinning inside the probe casing generates horizontal vibrations. The design of this eccentric mass, combined with the rotational speed, determines the kinetic energy delivered to the surrounding ground.
Energy transfer mechanics rely on these horizontal vibrations to rearrange loose granular soil particles. As the probe vibrates, it breaks the friction between individual sand or gravel grains. The soil temporarily loses its structure, allowing gravity and vibration to force the particles into a denser, more stable state. This rearrangement drastically reduces the void ratio within the soil matrix. A lower void ratio increases the bearing capacity of the ground, enabling it to support heavy structures. Furthermore, this densification process significantly enhances foundation liquefaction resistance during seismic events.
Mechanical vibration alone rarely achieves target depths without fluid assistance. Water jetting synergy is necessary for successful penetration and compaction. High-pressure water jets, utilizing either side water or bottom jets, serve multiple functions. Bottom jets break the surface tension of the soil, fluidizing the material directly beneath the probe tip. This action allows the heavy equipment to sink to the required depth under its own weight. Side water jets stabilize loose grainy soil along the shaft, preventing premature collapse of the borehole and flushing finer particles to the surface. The interaction between mechanical vibration and water pressure dictates the efficiency of the entire operation.
Geotechnical engineering dictates a strict law of diminishing returns regarding kinetic energy. Adding more power does not infinitely increase soil density. Every soil profile possesses a maximum achievable density based on its particle size distribution and angularity. Once the soil reaches this threshold, additional kinetic energy fails to transfer through the dense matrix. Instead, the energy reflects back into the equipment. This generates excess heat, places immense stress on internal bearings, and can even cause particle crushing. Crushing alters the soil gradation, potentially reducing permeability and hindering drainage consolidation.
Vibroflot Energy Transfer Parameters
Parameter | Definition | Impact on Soil Compaction |
|---|---|---|
Centrifugal Force | The outward force generated by the spinning eccentric weight. | Determines the maximum radius of influence and the ability to displace dense granular material. |
Amplitude | The maximum displacement of the probe from its resting center. | Controls the physical displacement of soil particles; higher amplitude is required for coarser materials. |
Frequency | The number of vibration cycles per minute (RPM). | Matches the natural resonance of the target soil; necessary for breaking inter-particle friction. |
Eccentric Moment | The mass of the eccentric weight multiplied by its distance from the axis. | Dictates the baseline kinetic energy available before RPM is factored into the equation. |
Standard power units serve a distinct and highly valuable purpose in ground improvement. A 75kW vibroflot is engineered for shallow to moderate depth compaction, typically reaching up to 15 meters. These units excel in clean, loose sands with minimal fines content. The energy output perfectly matches the requirements for densifying uniform granular soils without over-stressing the material or the equipment.
The operational advantages of this power tier focus heavily on logistics and mobility. Lower mobilization costs make these units attractive for smaller sites or projects with strict budget constraints. They are highly compatible with standard carrier cranes and conventional excavators, eliminating the need to source specialized heavy-lift machinery. A standard 30-ton to 40-ton crawler crane easily manages the weight and dynamic loads of a 75kW system. Furthermore, the reduced fuel consumption of the supporting generators provides a leaner operational footprint, which is particularly beneficial in remote locations with limited fuel supply chains.
However, engineers must account for specific limitations when deploying standard power units. The lower centrifugal force results in a smaller radius of influence around the probe. This limitation requires tighter grid spacing to ensure overlapping compaction zones. Tighter spacing increases the total number of penetration points required to cover a specific area. Consequently, this extends the overall time on site for large-area land reclamation projects, requiring careful schedule management.
Stepping up the power scale introduces greater versatility for complex soil profiles. A 130kW vibroflot represents the industry standard for moderate to deep compaction. These units handle mixed granular soils effectively, powering through layers that might stall a smaller machine. They are the primary choice for standard vibro replacement projects, commonly known as stone column installations, utilizing top-feed vibroflotation techniques.
This power tier balances penetration speed with energy efficiency. The increased amplitude and centrifugal force allow the probe to displace stiffer soils and create larger diameter stone columns. This capability achieves wider grid spacing than 75kW units. Wider spacing reduces the total number of compaction points, accelerating the project schedule. Despite the increased power, these units do not generally require specialized, ultra-heavy carrier rigs. A standard 50-ton to 80-ton crane provides adequate mast stability and lifting capacity, maintaining a manageable mobilization profile.
Success criteria for deploying this equipment depend on balancing competing project demands. It is best suited for projects requiring accelerated drainage consolidation and improved shear strength across variable soil strata. The equipment logistics remain straightforward, allowing contractors to maintain high daily production rates without the massive infrastructure footprint associated with the heaviest machines.
Extreme site conditions demand maximum kinetic energy. A 180kW vibroflot is engineered for extreme depths, frequently operating at 80+ feet (24+ meters) below the surface. These machines tackle highly resistant initial soil states and unfavorable soil conditions that would halt standard equipment. They are the backbone of large-scale land reclamation projects, port expansions, and artificial island construction.
The primary operational advantage of a high power vibroflot is the massive radius of influence it generates. The immense centrifugal force sends shockwaves far into the surrounding soil matrix. This allows for significantly wider grid spacing. On massive project footprints, expanding the distance between compaction points by even a half-meter eliminates thousands of probe penetrations. This capability ensures faster coverage and creates a foundation capable of resisting heavy external loads from industrial facilities or high-rise structures.
Deploying this level of power requires substantial infrastructure. These systems demand heavy-duty crawler cranes, often exceeding 100-ton capacities, with exceptional mast stability. The electrical draw necessitates high-capacity power packs and heavy-gauge cabling to prevent voltage drops over long distances. Furthermore, managing the increased penetration resistance requires specialized high-pressure water jetting systems capable of delivering massive volumes of water to fluidize dense soil layers at extreme depths.
Geotechnical realities often contradict the desire for maximum machine power. The fines penalty is a critical concept in ground improvement. High power equipment struggles significantly in soils containing more than 15% fines, such as silts and clays. Fine particles possess cohesion and low permeability. When subjected to massive kinetic energy, the vibration dampens rapidly. Instead of rearranging into a denser state, the excess power remolds the soil, destroying its natural structure and drastically reducing its shear strength.
Over-vibration introduces severe risks to foundation stability. Applying excessive energy to saturated soils causes a rapid, localized pore water pressure buildup. Because the fine particles restrict water flow, the pressure cannot dissipate quickly. This trapped pressure prevents proper particle interlocking and cohesion. The soil essentially enters a state of localized liquefaction during the compaction process, failing to achieve the required density targets once the equipment is removed.
Pushing heavy machinery to its maximum output accelerates mechanical degradation. Higher centrifugal forces place immense stress on every component within the probe. The eccentric shaft, bearings, and vibration isolators absorb punishment with every rotation. Operating a massive motor in dense, unyielding soil generates extreme heat. If the cooling systems cannot dissipate this heat, the internal lubricants break down, leading to rapid component failure.
Maintenance overhead scales aggressively with equipment size and power output. High-capacity units require strict adherence to maintenance intervals. The replacement parts for massive eccentric assemblies and specialized high-temperature bearings represent a significant logistical challenge. Running a high-capacity machine at maximum output in inappropriate soil conditions guarantees premature wear, forcing unexpected downtime and requiring complex field repairs that halt project progress.
System matching is a non-negotiable requirement for site safety and operational efficiency. Pairing a massive vibratory probe with an undersized generator leads to voltage drops, motor stalling, and electrical component burnout. Similarly, suspending a heavy, high-output probe from a carrier rig lacking the necessary mast stability creates severe safety hazards. The rig must withstand the dynamic loads and violent vibrations transmitted up the suspension lines during hard driving conditions.
Site accessibility dictates equipment selection just as much as soil mechanics. The footprint of the required support equipment for high-capacity setups is massive. Large generators, high-volume water pumps, settling ponds, and thick hose bundles consume significant space. In confined urban sites or restricted industrial facilities, maneuvering this support infrastructure is often impossible. Selecting equipment that physically fits the site constraints is just as critical as meeting the geotechnical specifications.
Proper vibroflotation equipment selection begins with rigorous geotechnical data analysis. Engineers must establish baseline requirements using Cone Penetration Test (CPT) or Standard Penetration Test (SPT) data. These tests provide the initial tip resistance and friction ratios necessary to determine the required bearing capacity. Without this baseline, equipment selection relies on guesswork rather than engineering principles.
Mapping the particle size distribution is the next critical phase. The soil gradation curve dictates the optimal frequency and amplitude of the vibratory probe. Coarse gravels require high amplitude to physically displace the large particles. Fine sands respond better to specific frequencies that break the surface tension and inter-particle friction. Matching the machine's mechanical output to the soil's physical properties ensures efficient energy transfer.
To execute a proper soil analysis, field engineers follow a strict sequence:
Extract continuous CPT logs across the entire proposed grid area to identify isolated clay lenses.
Calculate the exact percentage of fines passing the #200 sieve from recovered SPT split-spoon samples.
Determine the initial relative density of the granular layers to establish the required compaction effort.
Map the groundwater table elevation to plan the necessary water jetting pressures and flow rates.
The soil profile dictates the fundamental ground improvement technique. Clean sands typically require deep vibro compaction, where the existing soil is densified without adding material. Mixed soils or those with higher fines content require vibro replacement, where stone is introduced to create structural columns. The chosen technique heavily influences the required kinetic energy and the configuration of the probe.
Engineers must match the kW rating to the required delivery method. They must evaluate if a top-feed or bottom-feed system is necessary to reach target depths. Top-feed systems rely on gravity and water flushing to deliver stone from the surface, requiring specific side water jetting configurations. Bottom-feed systems deliver stone directly to the tip via a tremie pipe, often utilizing air pressure and requiring different probe geometries and power outputs to displace the surrounding soil effectively.
Grid spacing determines the overall efficiency of the ground improvement campaign. Engineers must model the radius of influence for different equipment tiers based on the specific site's soil density targets. A triangular grid pattern maximizes coverage, but the distance between points varies drastically depending on the centrifugal force applied.
The calculation requires comparing the logistical requirements of a larger unit against the labor and time savings of drilling fewer compaction points. While a massive machine covers a larger area per penetration, it requires more fuel, heavier cranes, and larger support crews. A smaller machine requires more penetrations but operates with a leaner, more agile footprint. The optimal choice balances the speed of execution with the practical realities of site logistics.
The reliability of the equipment dictates the success of the project schedule. Vetting a vibroflot manufacturer requires evaluating their engineering pedigree and support infrastructure. Assess manufacturers based on OEM parts availability and the responsiveness of their field engineering support. Transparent performance data, rather than theoretical maximums, must guide the procurement process.
Look for specific reliability indicators in the equipment design. Water-cooling efficiency designs are critical for maintaining bearing integrity during long shifts in dense soil. Examine the bearing lifespan ratings provided by the engineering team. Demand real-world case studies matching your exact soil profile and depth requirements. Proven success at 80+ feet in similar geotechnical conditions provides confidence that the equipment will perform as specified.
To ensure foundation stability and project efficiency, construction teams must abandon the assumption that maximum power solves all compaction challenges. You must align the mechanical output of your equipment directly with the geotechnical realities of your site. Implement the following actions to secure the right machinery for your next ground improvement project:
Execute a comprehensive review of all CPT and SPT data to define the exact fines content and initial density of the target soil layers.
Conduct a pre-construction field trial with the shortlisted equipment to verify the actual radius of influence and test water jetting configurations.
Finalize the grid spacing layout based on the empirical data gathered during the field trial rather than relying solely on theoretical models.
Audit the site layout to confirm adequate space and access for the specific carrier rigs, generators, and water pumps required by the chosen equipment tier.
A: For standard clean sands and shallow-to-moderate depths, the typical power ranges from 75kW to 130kW. These units provide sufficient centrifugal force to rearrange loose granular particles into a dense matrix without causing excessive particle crushing or requiring specialized heavy-lift carrier rigs.
A: Higher motor power generates greater centrifugal force, which pushes kinetic energy further into the surrounding soil. This increased radius of influence allows engineers to design wider grid spacing, significantly reducing the total number of penetration points required to compact a large site.
A: Yes, these high-capacity units are frequently used for vibro replacement in dense soils or unfavorable soil conditions. They provide the necessary force to displace stiff material, allowing for the construction of large-diameter stone columns using both bottom-feed and top-feed delivery methods.
A: An underpowered unit will fail to reach the target depth and will not generate a sufficient radius of influence. This results in inadequate bearing capacity, leaving the foundation vulnerable to shear forces, and causes excessive time spent attempting to compact each individual point.
A: Select a manufacturer based on their ability to provide verifiable equipment lifespan data and responsive local support. Prioritize companies offering direct engineering consultation services, OEM parts availability, and proven case studies demonstrating success in complex deep foundation layers similar to your site.
