Building on unconsolidated soil carries immense financial and structural risks. Inadequate ground improvement methods often lead to catastrophic foundation failure, unexpected project delays, and severe safety hazards. When standard shallow compaction falls short, heavy-duty vibro techniques step in as the reliable engineering standard. They effectively mitigate major risks like seismic settlement and soil liquefaction. Geotechnical engineers must carefully navigate complex soil parameters to determine the best mitigation strategy. This article provides project managers, engineers, and procurement teams with a practical, decision-stage framework. You will learn how to evaluate critical soil conditions and select the exact machine configuration for your site. We also explore how to vet a dependable supplier to guarantee continuous onsite performance. Ultimately, you will gain the necessary insights to transition confidently from shallow surface rolling to deploying heavy-duty Vibroflot Equipment. This ensures deep, permanent ground stabilization.
Soil Parameters: Heavy-duty vibro techniques are strictly governed by soil composition; cohesive soils with >10-25% fines require replacement (stone columns) rather than simple compaction.
Equipment Configurations: The choice between Top Feed and Bottom Feed Vibroflot Equipment depends entirely on water table depth and soil collapse risk.
Measurable Outcomes: Proper implementation yields a 3x to 4x increase in soil strength, verifiable via Standard Penetration Testing (SPT) or Cone Penetration Testing (CPT).
Supplier Vetting: A reliable vibroflotation construction supplier must provide equipment with real-time data logging and robust internal components (e.g., premium bearings, dual-cooling) to prevent onsite failure.
Surface compaction methods simply hit a physical wall at deeper elevations. Dynamic compaction or heavy impact rollers handle top-level consolidation quite well. However, they cannot effectively densify soils beyond shallow depths. A heavy roller usually maxes out around one to two meters. Dynamic compaction might force particle rearrangement down to ten meters. In stark contrast, heavy-duty vibroflots can treat soils up to 40 meters deep. Treating deep geological layers becomes critical when massive structural loads apply downward pressure across a broad area.
High-risk development zones absolutely require these deep intervention methods. Coastal developments, reclaimed land projects, and commercial port infrastructure face constant geological threats. The threat of liquefaction remains a primary concern in seismically active regions. During an earthquake, unconsolidated saturated sands lose their shear strength. They essentially turn into a liquid. This causes sudden, disastrous seismic subsidence. Vibro compaction densifies these loose sands, effectively removing the void spaces where water pressure normally builds up.
Project teams often debate cost-efficiency versus traditional deep foundations. Driving deep concrete or steel piles solves load-bearing problems, but it dramatically inflates project budgets and timelines. Heavy-duty vibro-techniques position themselves as a highly financially viable alternative. As long as the site conditions permit their use, you avoid the heavy material costs of piling. You simply improve the existing onsite soil to support standard shallow foundations. This shift directly accelerates construction schedules while delivering verifiable load-bearing capacities.
Deploying heavy machinery requires strict adherence to soil mechanics. You cannot force a single method onto varying soil profiles. Geotechnical triggers dictate exactly how you must approach the ground improvement process.
The percentage of fine particles directly controls which technique you execute. Engineers widely rely on the 10-25% fines threshold rule to separate compaction from replacement.
Condition A (Clean Sands/Gravels): Here, the fines content sits below 10%. This profile proves ideal for Vibro Compaction. The equipment utilizes high-pressure water jets and intense horizontal vibrations. Together, they successfully reorganize the grain distribution. Gravity settles the particles into a dense, tightly locked matrix.
Condition B (Silts/Clays): In these soils, the fines content exceeds 15-25%. Permeability drops drastically. The dense soil structure prevents excess pore water dissipation during vibration. Therefore, vibration alone achieves nothing. This scenario requires Vibro Replacement. You must construct artificial stone columns. These columns create structural, load-bearing pillars while doubling as vertical drainage channels.
Soft soils demand special attention before equipment deployment. When dealing with extremely soft clays or peats, engineers measure the undrained shear strength (Su). Soils presenting less than 20 kPa undrained shear strength dictate specific mechanical approaches. In these ultra-soft conditions, the surrounding soil lacks sufficient lateral confinement. If you attempt standard stone column construction, the lack of side pressure can lead to column bulging. It can also cause shallow shear failure under load. Specialized containment methods or alternative piling might become necessary.
High water tables drastically alter equipment selection. Saturated environments commonly occur in coastal zones or specific regional geologies. When you withdraw a standard probe from a saturated borehole, the surrounding water pressure often forces the hole to collapse. You lose your pathway before you can fill it with aggregate. These conditions mandate specialized probe deployment. By using specialized techniques, you prevent borehole collapse and guarantee column integrity.

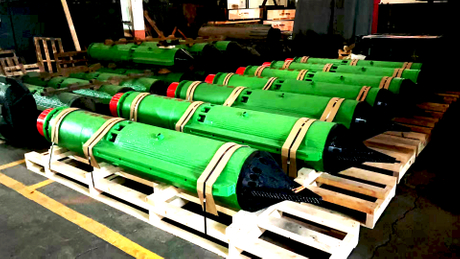

Choosing the correct Vibroflot Equipment for Soil Stabilization requires matching the aggregate delivery method to the geological reality. The industry primarily uses two distinct configurations: Top Feed and Bottom Feed.
The Top Feed method represents the most common and historically economical approach. It operates as a displacement method. The operator lowers the probe to the target depth. Upon reaching the bottom, the probe is gradually withdrawn. Crews then feed aggregate material from the surface directly down the annular gap created by the probe.
This configuration works best for stable boreholes and moderate water tables. It suits economically constrained projects because the machinery setup remains relatively simple. However, it carries significant limitations. The Top Feed method becomes entirely ineffective in collapsing soils. If the hole caves in during withdrawal, the gravel never reaches the tip, leading to compromised column structural integrity.

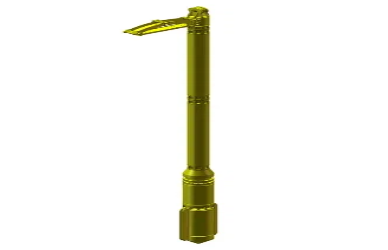

The Bottom Feed method solves the problem of unstable ground. It operates as a non-displacement method. Instead of dropping aggregate from the surface, a hopper and delivery tube transport the gravel directly to the probe tip. The material exits the probe exactly where the vibration occurs.
This method proves best for high water tables and ultra-soft cohesive soils (those under 20 kPa). It also excels in environmentally sensitive sites because it heavily minimizes water usage and spoil return to the surface. The main advantage lies in guaranteed column integrity. Because the aggregate flows internally, the system completely prevents hole collapse during the withdrawal phase.
Feature | Top Feed Method | Bottom Feed Method |
|---|---|---|
Primary Mechanism | Aggregate fed from surface down the annular gap. | Aggregate fed through an internal delivery tube to the tip. |
Ideal Soil Conditions | Stable boreholes, moderate water tables, lower collapse risk. | High water tables, ultra-soft clays (<20 kPa), high collapse risk. |
Environmental Impact | Higher water usage, more surface spoil generation. | Minimal water usage, highly reduced surface spoil. |
Column Integrity | Vulnerable to soil cave-ins during withdrawal. | Guarantees continuous aggregate placement. |
Successful ground improvement relies on more than just lowering a probe into the dirt. Engineering teams must tightly control execution parameters to guarantee structural outcomes.
Grid spacing dictates the entire project scope. Engineers typically design insertion points in a triangular or square grid spacing. This spacing usually ranges from 1.5 meters to 3.0 meters. The engineering assumptions behind this spacing depend on the soil's initial relative density and the final load-bearing requirement. Tighter grids produce higher densification but exponentially increase total probe insertions. This directly impacts the total project timeline. It also significantly alters equipment leasing or purchasing costs. You must balance the engineering requirement against the commercial reality.
Modern operators never guess when compaction is complete. They rely on empirical stopping factors. If you pull the probe up too quickly, the soil remains loose. If you leave it too long, you waste valuable operational hours. Engineers establish specific parameters to control the withdrawal sequence.
Hydraulic Pressure Limits: As the soil densifies, it resists the probe's rotation. Hydraulic pressure clearly indicates ground stiffness.
Amperage Spikes: Electric rigs measure motor resistance. A target amperage spike confirms the surrounding soil has reached optimal density.
Gravel Volume Consumption: When constructing stone columns, tracking the exact cubic meters of gravel consumed per depth interval verifies the column diameter.
You cannot manage what you cannot measure. Today's commercial foundation projects require strict quality assurance documentation. In-cab monitors have become an absolute necessity. These systems display real-time depth, vibration frequency, and material flow rates. Operators use this data to adjust their technique on the fly. More importantly, these systems generate downloadable, compliance-ready reports. Geotechnical engineers review these logs to approve the foundation preparation before concrete pouring begins.
Your ground improvement strategy is only as strong as the machinery executing it. Procuring equipment demands rigorous technical vetting. When evaluating a vibroflotation construction supplier, you must move beyond basic pricing and scrutinize three primary operational pillars.
Equipment Durability and Mechanical Specs: Deep compaction creates brutal operating environments. Look closely at the probe construction. You need forged steel casings to withstand extreme subterranean abrasion. The eccentric bearings represent the heart of the machine. High-grade, premium bearings prevent catastrophic underground seizures. Additionally, the rig must feature proprietary water-cooling jackets. These dual-cooling systems allow the equipment to survive continuous 30Hz or 50Hz operation without thermal shutdown.
Fleet Scalability: Major infrastructure developments require immense daily yields. Can the supplier scale their offerings? Ask if they provide dual or tandem rig setups. Suspending two vibroflots from a single crane effectively doubles your daily cubic-meter yields. This scalability becomes non-negotiable for massive reclamation projects facing tight seasonal deadlines.
Technical Support and Local Adaptability: A true partner does more than ship steel. Evaluate suppliers based on their willingness to engage in pre-project engineering. They should routinely request and review your CPT logs prior to making an equipment recommendation. Furthermore, assess their ability to supply specialized tooling. Modular follower tubes, customized fins, or tailored hopper extensions prove critical when adapting to unforeseen local geological anomalies.
Standardizing foundation stability requires a highly methodical approach to soil engineering. You cannot apply surface rolling to deep geological problems. Achieving measurable, permanent results means matching exact soil parameters to the specific equipment type. The percentage of fines, the undrained shear strength, and the local water table directly dictate whether you utilize a displacement or non-displacement method.
Your next steps involve strict data gathering. First, compile and analyze your site’s recent SPT and CPT data logs. Second, consult with geotechnical specialists to determine the optimal grid spacing and material feed method for your specific risk profile. Finally, initiate discussions with vetted suppliers who can deliver durable machinery paired with real-time reporting software. By aligning your geological data with the right heavy-duty equipment, you ensure a fail-proof foundation for any major structural development.
A: Generally no, due to a distinct lack of lateral confinement in these soils. When you attempt to form stone columns in peat, the surrounding soil cannot push back, causing the columns to bulge and lose structural integrity. In these extreme conditions, Vibro Concrete Columns (VCC) or traditional deep piling may be required instead.
A: You verify success through rigorous post-treatment in-situ testing. Engineers primarily rely on standard penetration tests (SPT) or cone penetration tests (CPT). They compare pre-treatment logs against post-treatment logs, aiming for a targeted relative density, which typically falls between 60% and 90%.
A: Dynamic compaction relies on dropping heavy steel weights from a crane to force particle re-arrangement through blunt impact. It works better for shallow, heterogeneous fill or rubble. Vibroflotation utilizes internal horizontal vibration and targeted water jetting to treat deep, homogeneous granular soils from the inside out.
