What Makes a Bottom Feed Vibroflot Ideal for Deep Soil Mixing Applications

In the realm of ground improvement, deep soil mixing stands out as a highly effective technique for enhancing the engineering characteristics of weak or unstable soils. Among the various tools used in this process, the bottom feed vibroflot has proven to be an indispensable solution, particularly when precision, efficiency, and material control are required.

What is a Bottom Feed Vibroflot?

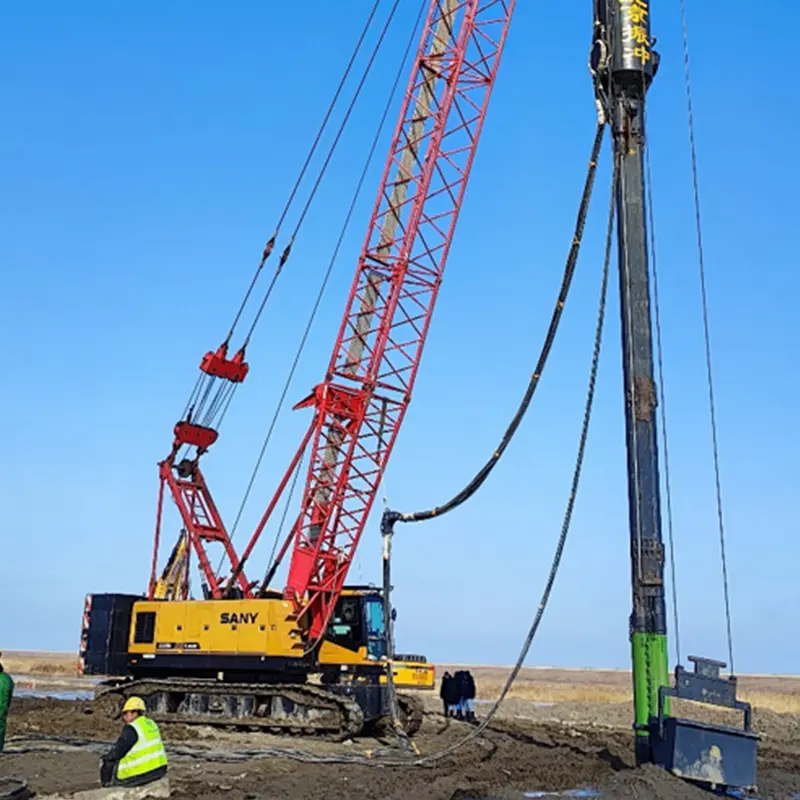

A bottom feed vibroflot is a specialized deep ground improvement tool that delivers aggregates and binder slurries—such as stone and cement-based grout—directly to the treatment depth through an internal feeding pipe. As the vibroflot penetrates the soil, high-frequency vibration and/or rotary motion are used to compact and thoroughly mix the native soil with injected materials, forming improved soil columns with enhanced strength and stability.

Unlike top feed systems that release materials from above, bottom feed technology minimizes material loss, particularly in saturated or loose soil environments. This makes it especially well-suited for deep foundation treatment, even under challenging site conditions.

Core Benefits of Bottom Feed Vibroflot Technology

1. Accurate Binder and Stone Placement

The defining feature of bottom feed vibroflots is the ability to inject granular materials and slurry directly at design depth, ensuring consistent distribution and bonding within the target treatment zone. This level of control is essential for maintaining quality in applications where bearing capacity and uniformity are critical.

2. Efficient Mixing and Densification

The combination of vertical vibration, lateral displacement, and binder-stone injection achieves both compaction and in-situ mixing, resulting in improved shear strength, reduced settlement potential, and optimized load transfer properties—vital in supporting heavy infrastructure.

3. Minimal Surface Disturbance

Because materials are introduced below ground, bottom feed systems greatly reduce surface-level disruptions, making them ideal for use in urban projects, constrained sites, or areas where existing structures or utilities must remain undisturbed.

4. Lower Environmental Impact

Bottom feed technology helps reduce waste and spillage, especially when using stone or other aggregates. By targeting only necessary depths, it limits the overuse of binders and minimizes runoff or contamination risks, making it a more sustainable choice in sensitive environments.

Application Scenarios

Foundation Reinforcement in Soft Soils

Bottom feed vibroflots are extensively used to treat soft clay, silt, peat, and loose sands, significantly enhancing their load-bearing performance. Applications include:

Industrial zone developments

Warehouse and logistics centers

Highway embankments

Rail transit hubs

Contaminated Soil Immobilization

In environmental remediation projects, bottom feed systems enable the targeted delivery of stabilization agents deep within contaminated zones, encapsulating harmful substances while preserving surface conditions.

Underwater Vibroflotation Gravel Pile Construction

Bottom feed vibroflots are especially indispensable for underwater gravel pile construction, a standard method for seabed and riverbed strengthening. In marine environments, top-feed systems suffer from material loss due to dispersion. In contrast, bottom feed systems inject gravel directly at depth, minimizing washout and ensuring high-density column formation.

This makes them the preferred solution for:

Port and harbor upgrades

Offshore wind turbine foundations

Bridge piers and marine causeways

Coastal reclamation and erosion mitigation

Deep Soil Mixing with Stone and Slurry

For infrastructure requiring robust support, bottom feed vibroflots inject graded stone and slurry binders in carefully measured proportions to create load-bearing composite columns. The continuous mixing action ensures a homogeneous improvement zone with high strength and reliability.

A Trusted Name in Vibroflotation Technology

With over four decades of dedication to the vibroflotation industry, Beijing Vibroflotation Engineering Machinery Co., Ltd. (BVEM) has become a leading force in providing complete sets of equipment for deep foundation construction. Originating from a Ministry of Water Resources R&D initiative, BVEM has contributed to key national projects such as the Yangtze River Three Gorges Project and the Hong Kong-Zhuhai-Macao Bridge.

As a co-editor of the national standard DL/T 1557-2016 Electric Deep Vibrator, BVEM continues to innovate and promote advanced techniques, including bottom feed vibroflot systems, to meet modern engineering challenges across land and sea.

Building the Future from the Ground Down

Bottom feed vibroflots represent the next generation of soil improvement tools—precise, powerful, and adaptable to a wide range of geotechnical needs. Whether stabilizing soft clay beneath a logistics hub or building stone columns under a harbor pier, this technology ensures safe, sustainable, and high-performance ground enhancement from the bottom up.
