Views: 0 Author: Site Editor Publish Time: 2025-06-26 Origin: Site
In the field of geotechnical engineering, the Vibro-Replacement Tool has emerged as a cornerstone of modern Soil Compaction Technology, particularly in projects requiring substantial Foundation Stabilization. This advanced technique involves the use of a specially designed Vibroflot Machine that inserts granular materials like gravel or crushed stone into soft soil layers to form columnar inclusions. These inclusions work to increase load-bearing capacity, reduce settlement, and improve the overall stability of the ground.
Among the most efficient and technologically advanced variants of this equipment is the Top Feed Vibroflot, renowned for its ability to compact a wide range of soil types while minimizing environmental disruption. In this comprehensive guide, we’ll explore how the Vibro-Replacement Tool functions, examine its technical specifications, and analyze how it contributes to mitigating risks such as deliquefaction.

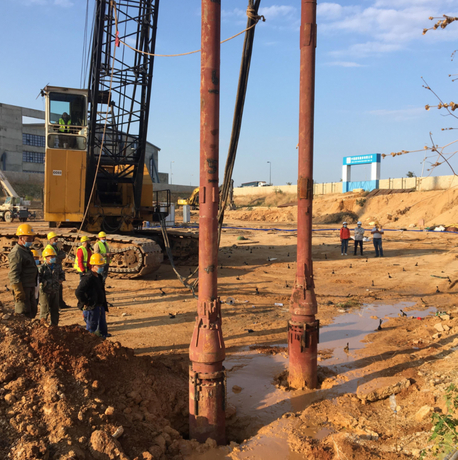

The Vibro-Replacement Tool, or Vibroflot Machine, operates on a straightforward yet powerful principle. The equipment consists of a vibrator with a potent motor (commonly around 130kW) and a vibrating body with a specific diameter, such as 426mm. The upper section houses a submersible motor, while the lower vibrating section generates horizontal vibratory forces.
A Top Feed Vibroflot introduces filler materials from the top of the hole using high-pressure air or water jets. This method not only aids in forming a precise borehole but also enhances efficiency by minimizing soil disturbance. The result is the formation of stone columns that serve to reinforce soft ground.
| Component | Function |
|---|---|
| Submersible Motor | Powers the vibrating body |
| Vibrating Shaft | Rotates with eccentric weights to produce horizontal vibrations |
| Eccentric Weights | Generate necessary vibration for soil compaction |
| Top Feed System | Allows delivery of granular fill into the borehole |
| Jetting Nozzles | Use high-pressure water or air to assist in soil penetration |
Position the Vibro-Replacement Tool on the target location.
Activate the vibrator to begin penetrating the soil using vibrations and jetting.
Reach the desired depth and start the top feed process.
Add granular material (e.g., gravel) into the hole.
Compact the material using continuous vibration.
Gradually withdraw the tool while filling and compacting in layers.
Repeat the process to form a grid or pattern of stone columns.
The Vibro-Replacement Tool is crucial for stabilizing foundations under highways, dams, reservoirs, and industrial structures. By replacing weak soils with compacted stone columns, it enhances both bearing capacity and resistance to differential settlement.
Deliquefaction—the loss of soil strength due to excess pore water pressure during seismic events—can be significantly reduced using this technology. The introduction of granular columns promotes drainage and increases shear strength, reducing the likelihood of liquefaction.
| Method | Soil Suitability | Depth Range | Speed | Cost | Environmental Impact |
|---|---|---|---|---|---|
| Vibro-Replacement Tool | Cohesive & Granular Soils | Up to 70m | Fast | Moderate | Low |
| Dynamic Compaction | Granular Soils Only | 10–15m | Medium | Moderate | High |
| Jet Grouting | All Soil Types | Up to 50m | Slow | High | Moderate |
| Stone Columns (Without Vibration) | Limited to Soft Clays | Up to 10m | Slow | Low | Low |
Modern Vibroflot Machines are now integrated with IoT-based monitoring systems that provide real-time data on compaction depth, vibration frequency, and fill rate. These innovations enhance precision and ensure consistent results across large-scale projects.
As environmental regulations tighten, the use of Top Feed Vibroflot technology has gained attention for its lower water consumption and reduced spoil generation compared to traditional drilling methods.
Recent designs allow for modular configurations of the Vibro-Replacement Tool, making it easier to adapt to site-specific constraints and reduce transportation and installation time.
A government-funded project in Malaysia utilized a 130kW Top Feed Vibroflot with a 426mm diameter to prepare the subsoil for a new expressway. Over 3,000 stone columns were installed, significantly reducing the post-construction settlement to under 15mm—well below the acceptable limits.
Post the 2011 Tōhoku earthquake, coastal infrastructure in Japan employed Vibro-Replacement Tools to rehabilitate and stabilize reclaimed land. The technique proved vital in reducing future liquefaction risks.
In the construction of a large reservoir in Turkey, engineers used the Vibroflot Machine to install over 5,500 stone columns. This enhanced embankment integrity and prevented seepage through weak soil zones.
By forming dense columns within soft soils, the Vibro-Replacement Tool distributes structural loads more effectively.
Compared to other ground improvement methods, the vibro-replacement approach delivers faster results with lower labor and material costs.
The tool works efficiently in various soils, from silty clays to granular fills, offering unmatched flexibility in foundation engineering.
The Top Feed Vibroflot system reduces excavation spoil and minimizes surface disruption, making it suitable for urban and ecologically sensitive areas.
A1: Any project involving soft or unstable soil—such as highways, airports, dams, and industrial foundations—can benefit from the use of Vibro-Replacement Tools.
A2: Proven in 1,500+ global projects, Equipped with premium FAG/NSK/SKF components, Capable of 70m+ ultra-deep pile construction.
A3: While it's highly versatile, its performance is best in cohesive and granular soils. It may not be ideal for very hard or highly organic soils without prior soil treatment.
The Vibro-Replacement Tool represents a fusion of innovation and reliability in Soil Compaction Technology. With its high efficiency, cost-effectiveness, and adaptability to various ground conditions, it has become an indispensable asset in modern civil engineering. Whether it’s for Foundation Stabilization, liquefaction mitigation, or large-scale ground improvement, the use of Top Feed Vibroflot systems ensures structural safety and long-term stability.
Incorporating tools like the Vibroflot Machine into your next construction project could mean the difference between a resilient, lasting structure and one vulnerable to soil failure. With rising concerns around deliquefaction and changing environmental standards, investing in such technology is not just wise—it’s essential.
